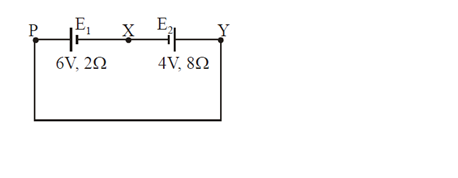

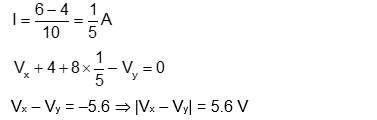

A cell $E_1$ of emf 6 V and internal resistance $2 \Omega$ is connected with another cell E2 of emf 4 V and internal resistance $8 \Omega$ (as shown in the figure). The potential difference across points X and Y is :
