JEE MAIN 2022
29-07-2022 S2
Question
A circuit element X when connected to an a.c. supply of peak voltage 100 V gives a peak current of 5 A which is in phase with the voltage. A second element Y when connected to the same a.c. supply also gives the same value of peak current which lags behind the voltage by $\frac{\pi}{2}$. . If X and Y are connected in series to the same supply, what will be the rms value of the current in ampere?
Select the correct option:
A
$\frac{10}{\sqrt{2}}$
B
$\frac{5}{\sqrt{2}}$
C
$5 \sqrt{2}$
D
$\frac{5}{2}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

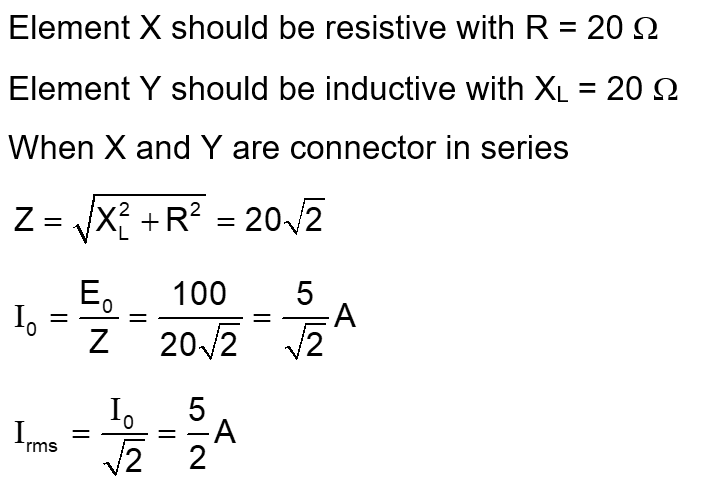

Solution
Question Tags
JEE Main
Physics
Medium
