JEE MAIN 2022
26-07-2022 S1
Question

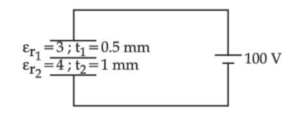

A composite parallel plate capacitor is made up of two different dielectric materials with different thickness $\left(\mathrm{t}_1\right.$ and $\left.\mathrm{t}_2\right)$ as shown in figure. The two different dielectric material are separated by a conducting foil F. The voltage of the conducting foil is ____V.
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

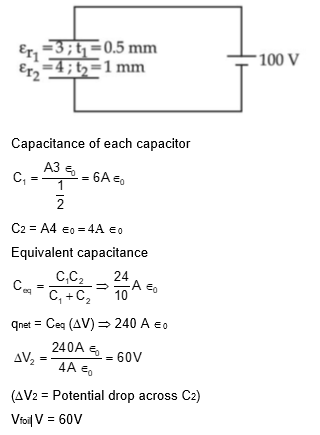

Solution
Question Tags
JEE Main
Physics
Medium
