JEE-MAIN 2020
03-09-2020 S2
Question
A galvanometer coil has 500 turns and each turn has an average area of $3 \times 10^{-4} \mathrm{~m}^2$. If a torque of 1.5 Nm is required to keep this coil parallel to a magnetic field when a current of 0.5 A is flowing through it, the strength of the field (in T ) is $\_\_\_\_$ .
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

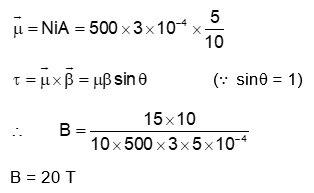

Solution
Solution Image
Question Tags
JEE Main
Physics
Easy
