JEE MAIN 2022

28-06-22 S1

Question

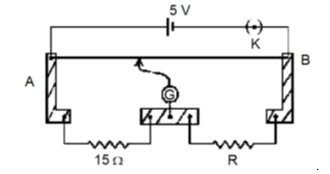

A meter bridge setup is shown in the figure. It is used to determine an unknown resistance R using a given resistor of $15 \Omega$. The galvanometer (G) shows null deflection when tapping key is at 43 cm mark from end A. If the end correction for end A is 2 cm then the determined value of R will be $\_\_\_\_$ $\Omega$

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

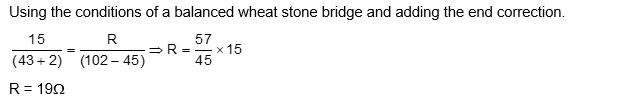

Solution

Question Tags

JEE Main

Physics

Hard
