JEE MAIN 2026
22-01-2026 S1
Question

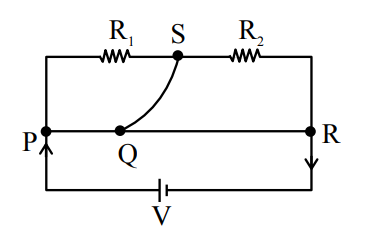

A meter bridge with two resistances $\mathrm{R}_1$ and $\mathrm{R}_2$ as shown in figure was balanced (null point) at 40 cm from the point P . The null point changed to 50 cm from the point P , when $16 \Omega$ resistance is connected in parallel to $R_2$. The values of resistances $R_1$ and $\mathrm{R}_2$ are $\_\_\_\_$ .
Question Image
Select the correct option:
A
$\mathrm{R}_2=16 \Omega, \mathrm{R}_1=\frac{16}{3} \Omega$
B
$\mathrm{R}_2=4 \Omega, \mathrm{R}_1=\frac{4}{3} \Omega$
C
$\mathrm{R}_2=8 \Omega, \mathrm{R}_1=\frac{16}{3} \Omega$
D
$\mathrm{R}_2=12 \Omega, \mathrm{R}_1=\frac{12}{3} \Omega$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

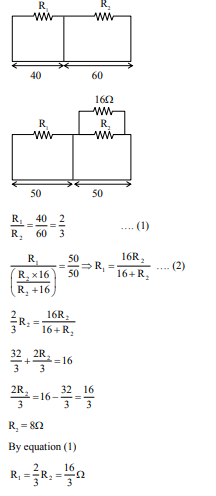

Solution
Solution Image
Question Tags
JEE Main
Physics
Hard
