JEE ADVANCE 2010
paper 1
Multiple correct answers - Select all that apply
Question
A ray OP of monochromatic light is incident on the face AB of prism ABCD near vertex B at an incident angle of $60^{\circ}$ (see figure). If the refractive index of the material of the prism is $\sqrt{3}$, which of the following is (are) correct?
Question Image
Select ALL correct options:
A
The ray gets totally internally reflected at face CD
B
The ray comes out through face AD
C
The angle between the incident ray and the emergent ray is 90°
D
The angle between the incident ray and the emergent ray is 120°
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

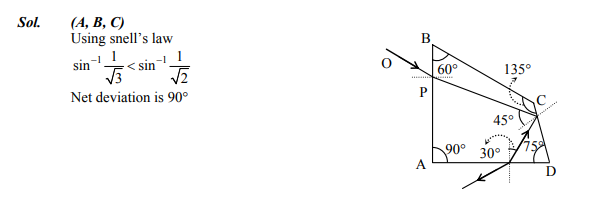

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
