JEE MAIN 2021
20-07-21 S2
Question

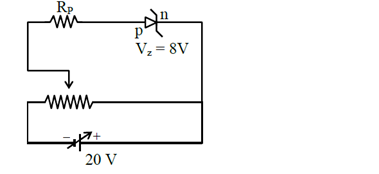

A zener diode having zener voltage 8 V and power dissipation rating of 0.5 W is connected across a potential divider arranged with maximum potential drop across zener diode is as shown in the diagram. The value of protective resistance $R_p$ is $\_\_\_\_$ $\Omega$.
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution
P = Vi , 0.5 = 8i i = 1/16 A E = 20 − 8 + iRp Rp = 12 × 16 = 192 Ω
Question Tags
JEE Main
Physics
Medium
