Question
A zener diode with 5 V zener voltage is used to regulate an unregulated dc voltage input of 25 V . For a $400\Omega$ resistor connected in series, the zener current is found to be 4 times load current. The load current $\left( {{I_L}} \right)$ and load resistance $\left( {{R_L}} \right)$ are :
Select the correct option:
A
${I_L} = 0.02mA;{R_L} = 250\Omega $
B
${I_L} = 10mA;{R_L} = 500\Omega $
C
${I_L} = 20mA;{R_L} = 250\Omega $
D
${I_L} = 10A;{R_L} = 0.5\Omega $
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

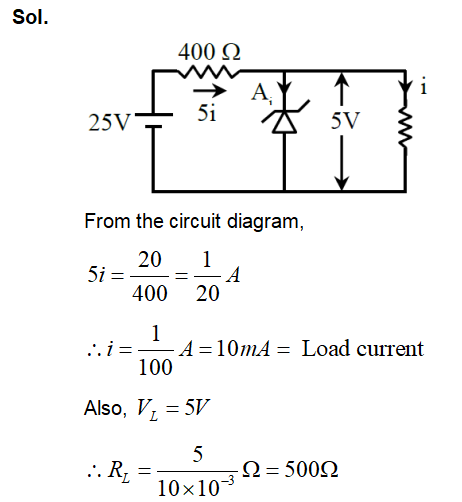

Solution
Solution Image
Question Tags
JEE Main
Physics
Medium
Start Preparing for JEE with Competishun
YouTube
Books
App
Tests

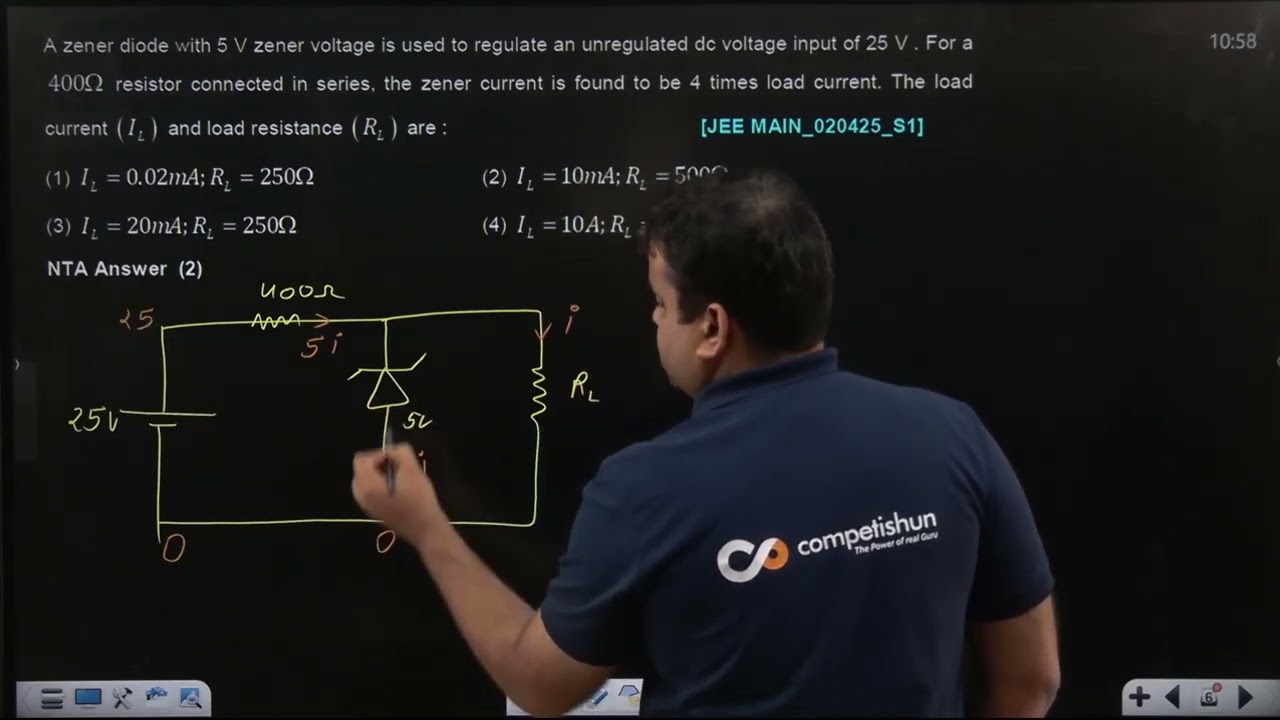

Video Solution
BY competishun
Video Solution
Watch Solution
