Boolean relation at..|Semiconductor Electronics|JEEMAIN 2020

JEE MAIN 2020

08-01-20 S1

Question

Boolean relation at the output stage-Y for the following circuit is :

Select the correct option:

A

$\bar{A} \cdot \bar{B}$

B

$A \cdot B$

C

$A+B$

D

$\overline{\mathrm{A}}+\overline{\mathrm{B}}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

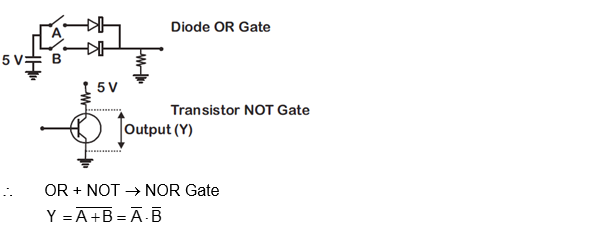

Solution

Question Tags

JEE Main

Physics

Medium
