JEE MAIN 2024

05-04-2024 S1

Question

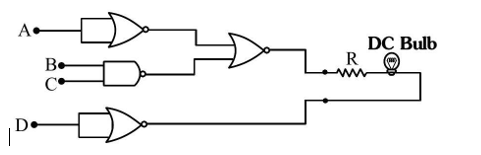

Following gates section is connected in a complete suitable circuit.

For which of the following combination, bulb will glow (ON):

Select the correct option:

A

A=0,B=1,C=1,D=1

B

A=1,B=0,C=0,D=0

C

A=0,B=0,C=0,D=1

D

A=1,B=1,C=1,D=0

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

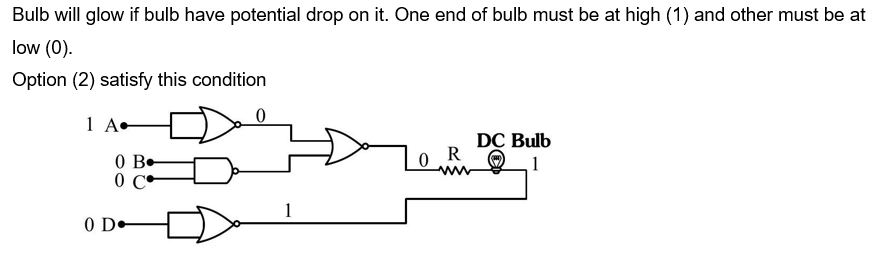

Solution

Question Tags

JEE Main

Physics

Medium
