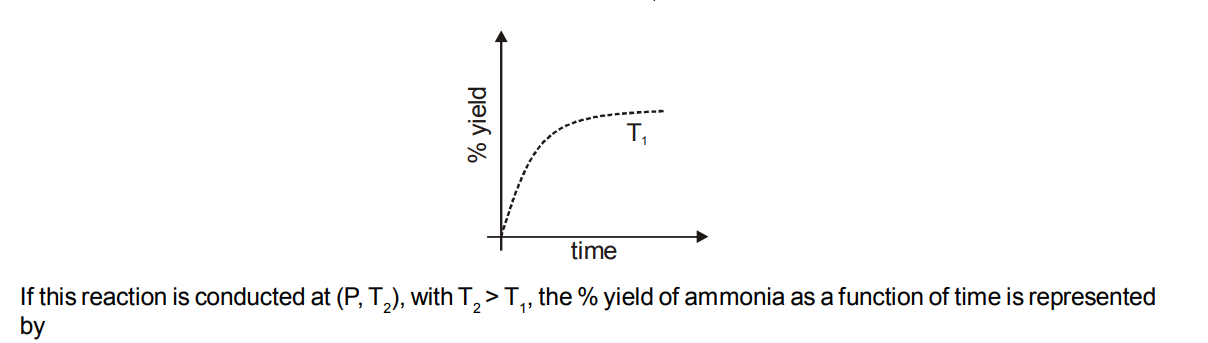

The $\%$ yield of ammonia as a function of time in the reaction :
$$
\mathrm{N}_2(\mathrm{~g})+3 \mathrm{H}_2(\mathrm{~g}) \rightleftharpoons 2 \mathrm{NH}_3(\mathrm{~g}), \Delta \mathrm{H}<\mathrm{O}
$$
at $\left(\mathrm{P}_{,} \mathrm{T}_1\right)$ is given below.

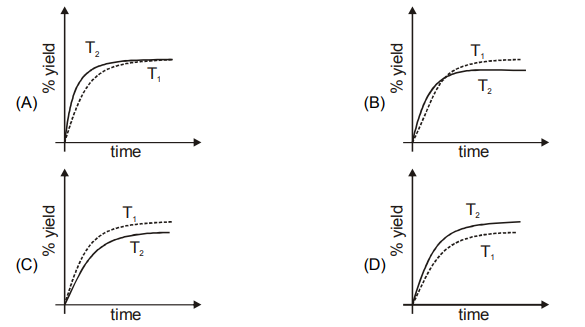

Options
A
B
C
D
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution
Initially on increasing temperature rate of reaction will increase, so % yield will also increase with time. But at equilibrium % yield at high temperature ( $T_2$ ) would be less than at $T_1$ as reaction is exothermic so the graph is
