JEE MAIN 2023
13-04-23 S1
Question

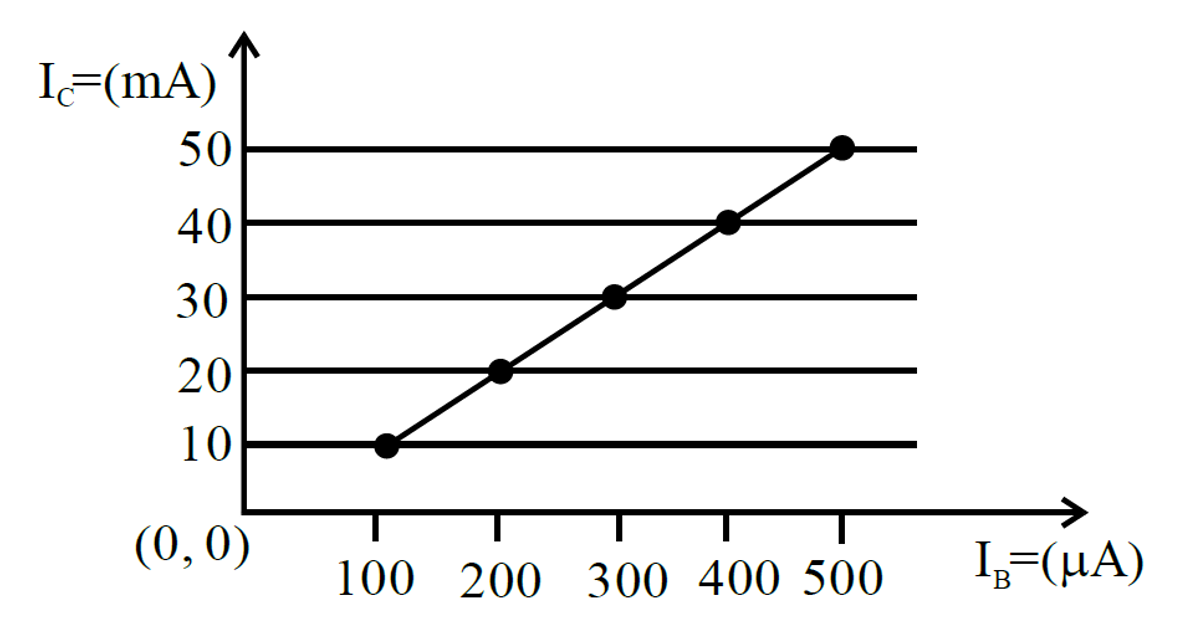

From the given transfer characteristic of a transistor in CE configuration, the value of power gain of this configuration is $10^{\mathrm{x}}$, for $\mathrm{R}_{\mathrm{B}}=10 \mathrm{k} \Omega$, and $\mathrm{Rc}=1 \mathrm{k} \Omega$. The value of x is $\_\_\_\_$ .
Question Image
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution

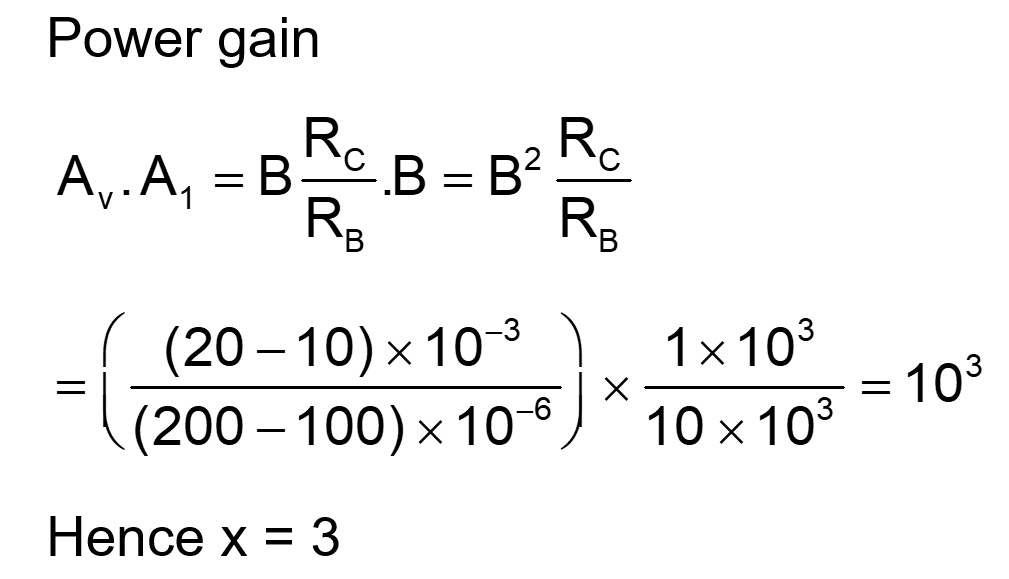

Solution Image
Question Tags
JEE Main
Physics
Medium
