JEE-MAIN 2019
12-01-2019 S2
Question
In a meter bridge, the wire of length 1 m has a nonuniform cross-section such that, the variation $\frac{\mathrm{dR}}{\mathrm{dl}}$ of its resistance R with length I is $\frac{\mathrm{dR}}{\mathrm{dl}} \propto \frac{1}{\sqrt{\mathrm{l}}}$. Two equal resistances are connected as shown in the figure. The galvanometer has zero deflection when the jockey is at point P . What is the length AP ?
Question Image
Select the correct option:
A
0.2 m
B
0.35 m
C
0.25 m
D
0.3 m
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

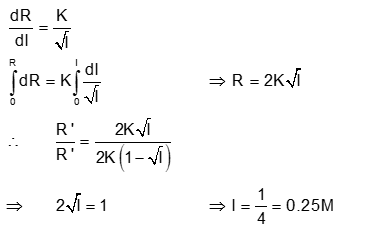

Solution
Solution Image
Question Tags
JEE Main
Physics
Easy
