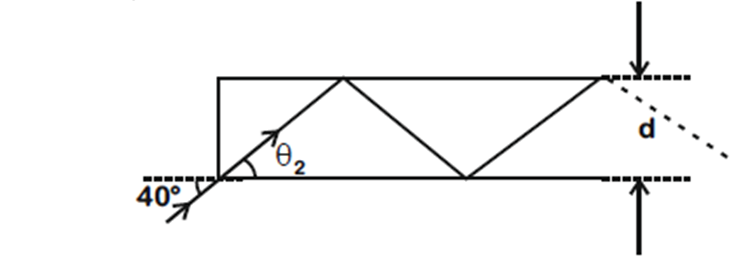

In figure, the optical fiber is I = 2 m long and has a diameter of $\mathrm{d}=20 \mu \mathrm{~m}$. If a ray of light is incident on one end of the fiber at angle $\theta_1=40^{\circ}$, the number of reflections it makes before emerging from the other end is close to: (refractive index of fiber is 1.31 and $\sin 40^{\circ}=0.64$ )
