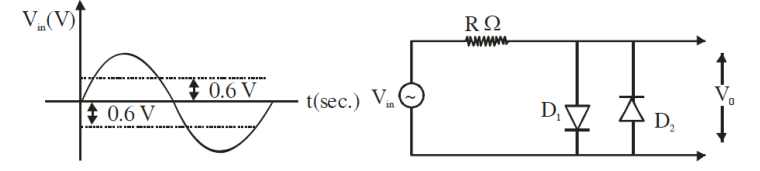

In the given circuit the input voltage $\mathrm{V}_{\text {in }}$ is shown in figure. The cut-in voltage of $\mathrm{p}-\mathrm{n}$ junction diode ( $\mathrm{D}_1$ or $\mathrm{D}_2$ ) is 0.6 V . Which of the following output voltage $\left(\mathrm{V}_0\right)$ waveform across the diode is correct?

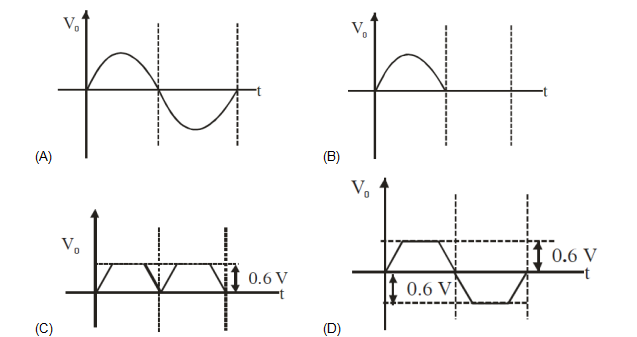

Options
A
B
C
D
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution
$\begin{aligned} & \text { In }+ \text { ve half cycle } \\ & D_1 \rightarrow F . B . ; D_2 \rightarrow R . B . \\ & 0-0.6 \mathrm{~V} \\ & V_{\text {out }} \text { same as } V_{\text {in }} \\ & \text { In -ve half cycle } \\ & D_2 \rightarrow F . B . ; D_1 \rightarrow R . B .\end{aligned}$
