JEE MAIN 2026
21-01-2026 S1
Question

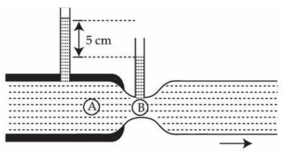

Water flows through a horizontal tube as shown in the figure. The difference in height between the water columns in vertical tubes is 5 cm and the area of crosssections at $A$ and $B$ are $6 \mathrm{~cm}^2$ and $3 \mathrm{~cm}^2$ respectively. The rate of flow will be $\_\_\_\_$ $\mathrm{cm}^3 / \mathrm{s}$. (take $g=10 \mathrm{~m} / \mathrm{s}^2$ )
Select the correct option:
A
$\frac{200}{\sqrt{3}}$
B
$200 \sqrt{6}$
C
$200 \sqrt{3}$
D
$100 \sqrt{3}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

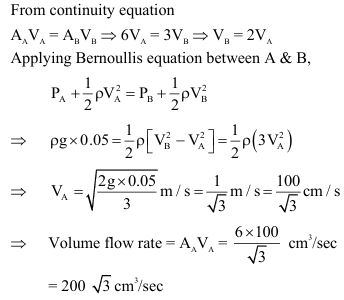

Solution
Solution Image
Question Tags
JEE Main
Physics
Hard
Start Preparing for JEE with Competishun
Video Solution
BY competishun
Video Solution
Watch Solution
