Question

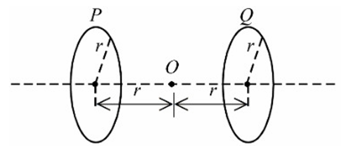

Two identical circular loops P and Q each of radius r are lying in parallel planes such that they have common axis. The current through P and Q are  and 4 respectively in clockwise direction as seen from O. The net magnetic field at O is:

Select the correct option:

$\frac{3 \mu_0 I}{4 \sqrt{2} r}$ Towards P

$\frac{\mu_0 I}{4 \sqrt{2} r}$ towards P

$\frac{\mu_0 I}{4 \sqrt{2} r}$ towards Q

$\frac{3 \mu_0 I}{4 \sqrt{2} r}$ towards Q

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

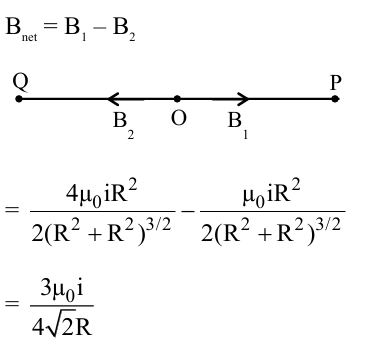

Solution
