Question

A series LCR circuit is connected to an ac source of 220V, 50Hz. The circuit contain a resistance $R = 100\,\Omega$ and an inductor of inductive reactance $R=100\,\Omega$. The capacitance of the capacitor needed to maximize the average rate at which energy is supplied will be _______ $\mu \mathrm{F}$ .

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

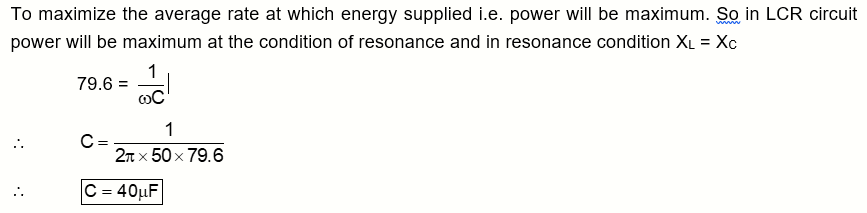

Solution

Question Tags

JEE Main

Physics

Medium
