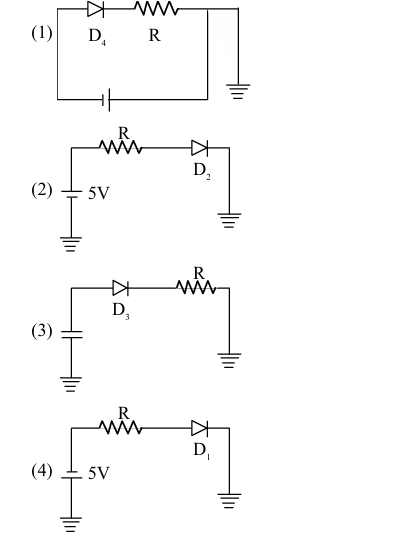

Which of the diode circuit shows correct biasing used for the measurement of dynamic resistance of p-n junction diode :

Options

A

B

C

D

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

Diode should be in forward biased to calculate
dynamic resistance
Hence correct answer would be 2.
