JEE MAIN 2021

27-07-21 S1

Question

A transistor is connected in common emitter circuit configuration, the collector supply voltage is 10 V and the voltage drop across a resistor of $1000 \Omega$ in the collector circuit is 0.6 V . If the current gain factor $(\beta)$ is 24 , then the base current is $\_\_\_\_$ $\boldsymbol{\mu}$ A. (Round off to the Nearest Integer)

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

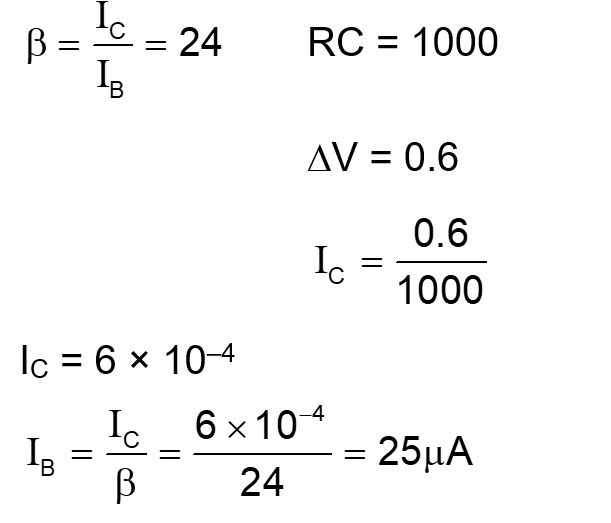

Solution

Question Tags

JEE Main

Physics

Easy
