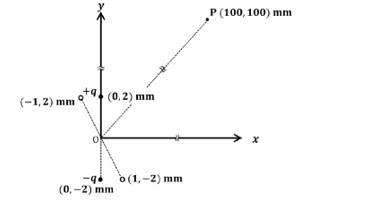

An electric dipole is formed by two charges +𝑞 and −𝑞 located in 𝑥𝑦-plane at (0, 2) mm and (0, −2) mm, respectively, as shown in the figure. The electric potential at point P (100,100) mm due to the dipole is 𝑉0. The charges +𝑞 and −𝑞 are then moved to the points (−1, 2) mm and (1, −2) mm, respectively. What is the value of electric potential at P due to the new dipole?
Select the correct option:
A
$\frac{V_0}{4}$
B
$\frac{\mathrm{V}_0}{2}$
C
$\frac{\mathrm{V}_0}{\sqrt{2}}$
D
$\frac{3 V_0}{4}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

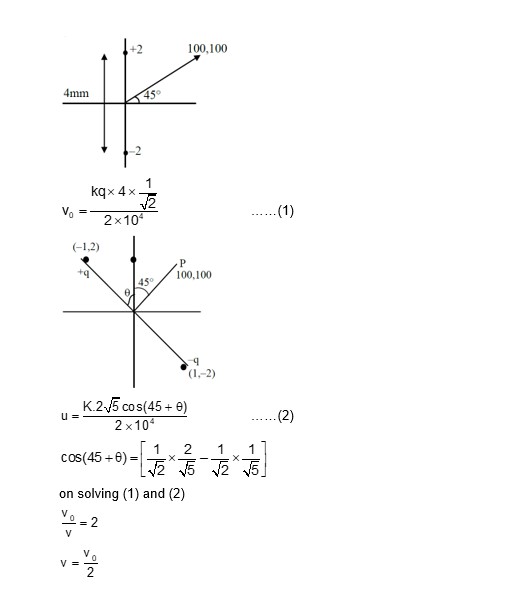

Solution
Solution Image
