A Block of Mass 10 kg Is Pulled... |JEE Main 2023 | Friction

Competishun Header

JEE MAIN 2023

01-02-2023 S2

Question

As shown in the figure a block of mass 10 kg lying on a horizontal surface is pulled by a force F acting at an angle $30^{\circ}$, with horizontal. For $\mu \mathrm{s}=0.25$, the block will just start to move for the value of F : [Given $\mathrm{g}=$ <BR.

Select the correct option:

A

33.3 N

B

25.2 N

C

20 N

D

35.7 N

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

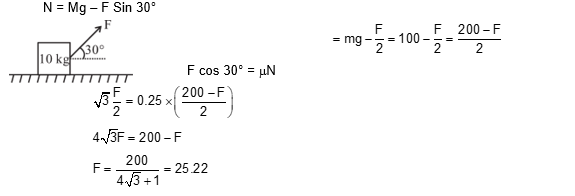

Solution

Question Tags

JEE Main

Physics

Medium
