JEE MAIN 2021

16-03-2021 S1

Question

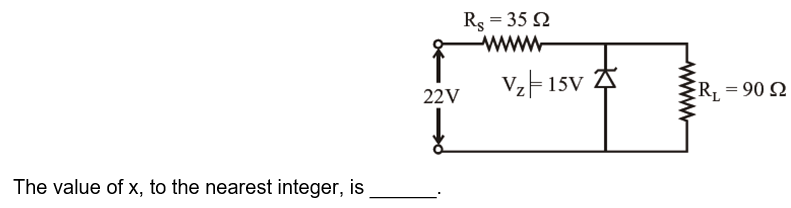

The value of power dissipated across the zener diode $\left(V_z=15 V\right)$ connected in the circuit as shown in the figure is $x \times 10^{-1}$ watt.

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

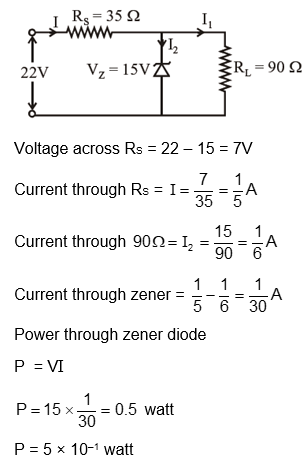

Solution

Question Tags

JEE Main

Physics

Easy
