JEE MAIN 2024
30-01-2024 S2
Question
Two resistance of $100 \Omega$ and $200 \Omega$ are connected in series with a battery of 4 V and negligible internal resistance. A voltmeter is used to measure voltage across $100 \Omega$ resistance, which gives reading as 1 V . The resistance of voltmeter must be $\Omega$.
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

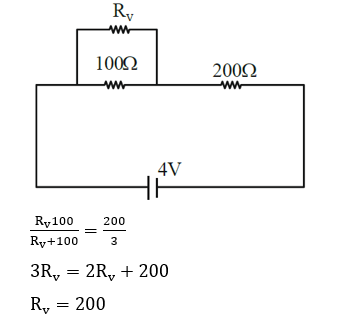

Solution
Solution Image
Question Tags
JEE Main
Physics
Medium
