JEE MAIN 2022
29-07-2022 S2
Question
A modulating signal 2sin $\left(6.28 \times 10^6\right) \mathrm{t}$ is added to the carrier signal 4sin $\left(12.56 \times 10^9\right)$ t for amplitude modulation. The combined signal is passed through a non-linear square law device. The output is then passed through a band pass filter. The bandwidth of the output signal of band pass filter will be_____MHz.
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

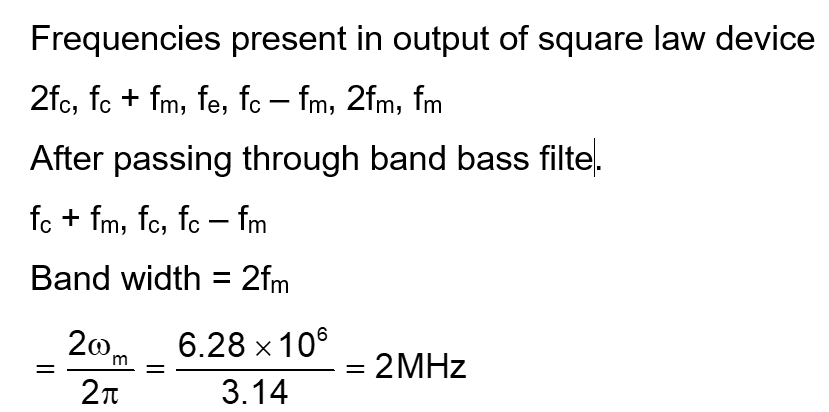

Solution
Question Tags
JEE Main
Physics
Easy
