JEE MAIN 2022
26-06-22 S1
Question

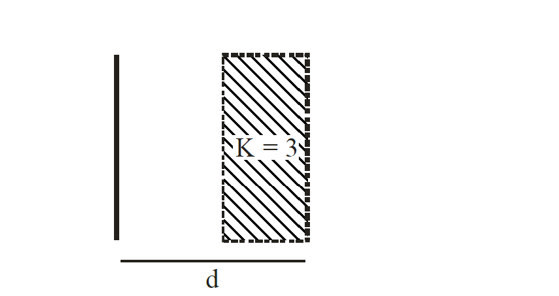

A parallel plate capacitor with plate area $A$ and plate separation $d=2 m$ has a capacitance of $4 \mu F$. The new capacitance of the system if half of the space between them is filled with a dielectric material of dielectric constant $\mathrm{K}=3$ (as shown in figure) will be.
Select the correct option:
A
$2 \mu \mathrm{~F}$
B
$32 \mu \mathrm{~F}$
C
$6 \mu \mathrm{~F}$
D
$8 \mu \mathrm{~F}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

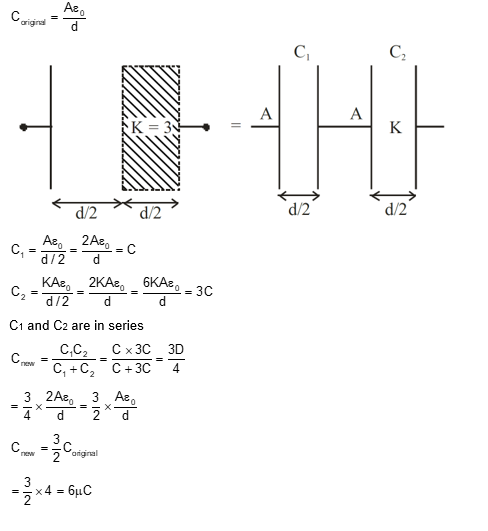

Solution
Solution Image
Question Tags
JEE Main
Physics
Easy
