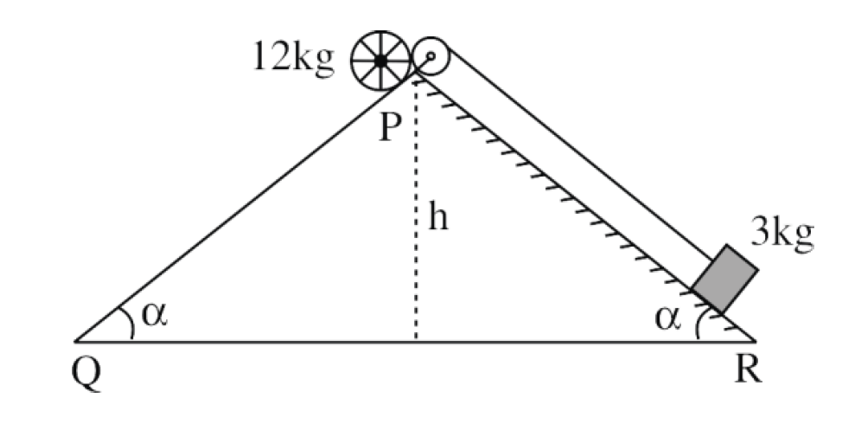

A rolling wheel of 12 kg is on an inclined plane at position P and connected to a mass of 3 kg through a string of fixed length and pulley as shown in figure. Consider PR as friction free surface.
The velocity of centre of mass of the wheel when it reaches at the bottom Q of the inclined plane PQ will be $\frac{1}{2} \sqrt{x g h} \mathrm{~m} / \mathrm{s}$The value of x is ______
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution
Net loss in PE = Gain in KE
$$
\begin{aligned}
& 12 g h-3 g h=\frac{1}{2} 3 v^2+\frac{1}{2} 12 v^2+\frac{1}{2}\left[12 r^2\right]\left(\frac{v}{r}\right)^2 \\
& 9 g h=\frac{1}{2}[3+12+12] v^2 \\
& v^2=\frac{2 g h}{3} \Rightarrow v=\frac{1}{2} \sqrt{\frac{8}{3} g h} \\
& x=\frac{8}{3} \approx 3
\end{aligned}
$$
