JEE Advance 2010
Paper-2
Question
A Vernier calipers has 1 mm marks on the main scale. It has 20 equal divisions on the Vernier scale which match with 16 main scale divisions. For this Vernier calipers, the least count is
Select the correct option:
A
0.02 mm
B
0.05 mm
C
0.1 mm
D
0.2 mm
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

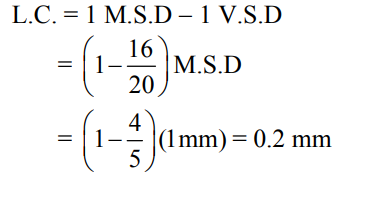

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
