JEE-MAIN 2022
25-06-2022 S2
Question

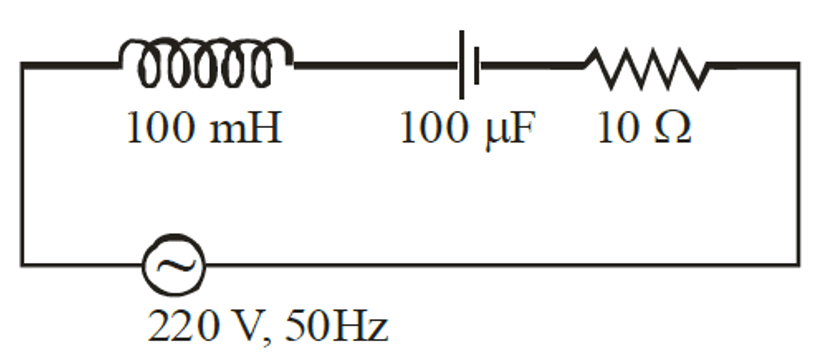

In a series LCR circuit, the inductance, capacitance and resistance are L = 100mH,$C=100 \mu \mathrm{~F}$ and $\mathrm{R}=10 \Omega$ respectively. They are connected to an AC source of voltage 220V and frequency of 50 Hz. The approximate value of current in the circuit will be____ A
Question Image
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution

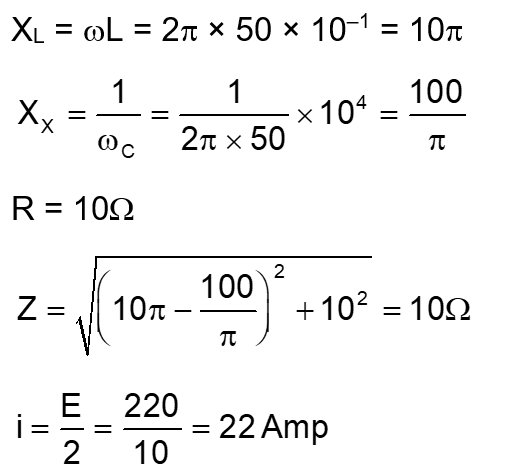

Solution Image
Question Tags
JEE Main
Physics
Easy
