JEE MAIN 2019
11-01-2019 S1
Question
In the circuit shown,

the switch $S_1$ is closed at time $t=0$ and the switch $S_2$ is kept open. At some later time $\left(t_0\right)$, the switch $S$ is opened and $S_2$ is closed. The behaviour of the current I as a function of time ' $t$ ' is given by

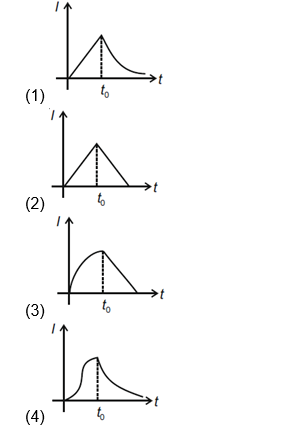

Options
Options Image
A
B
C
D
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

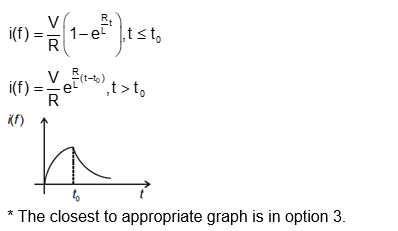

Solution
Solution Image
