In the given circuit voltage... |JEE Main 2024 | Solid State

JEE MAIN 2024

30-01-2024 S2

Question

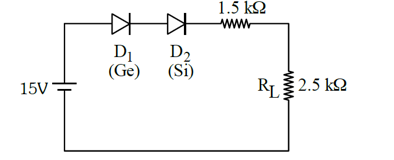

In the given circuit, the voltage across load resistance ( $R_L$ ) is:

Select the correct option:

A

8.75 V

B

9.00 V

C

8.50 V

D

14.00 V

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

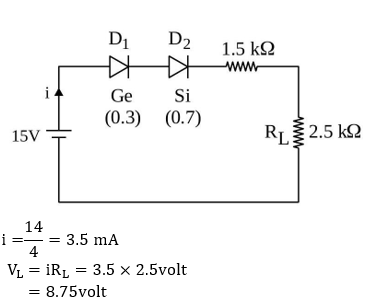

Solution

Question Tags

JEE Main

Physics

Medium
