JEE MAIN 2019
09-04-2019 S2
Question
The resistance of a galvanometer is 50 ohm and the maximum current which can be passed through it is 0.002 A. What resistance must be connected to it in order to convert it into an ammeter of range 0 – 0.5 A?
Select the correct option:
A
0.2 ohm
B
0.002 ohm
C
0.5 ohm
D
0.02 ohm
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

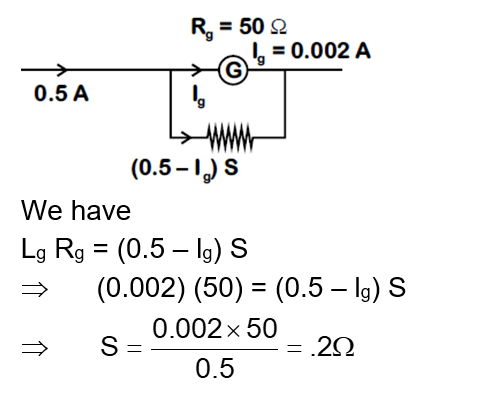

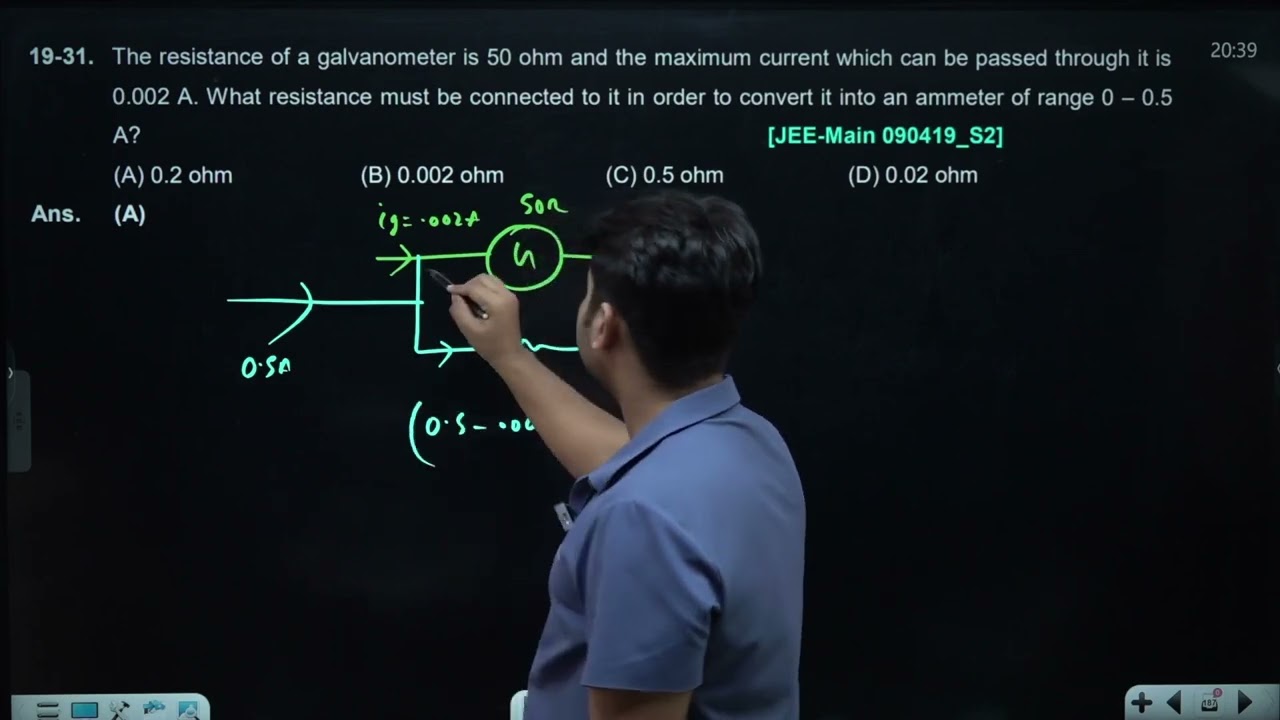

Solution
Question Tags
JEE Main
Physics
Medium
