JEE MAIN 2026
22-01-2026 S1
Question
Two loudspeakers ( $L_1$ and $L_2$ ) are placed with a separation of 10 m , as shown in figure. Both speakers are fed with an audio input signal of same frequency with constant volume. A voice recorder, initially at point $A$, at equidistance to both loud speakers, is moved by 25 m along the line AB while monitoring the audio signal. The measured signal was found to undergo 10 cycles of minima and maxima during the movement. The frequency of the input signal is $\_\_\_\_$ Hz (Speed of sound in air is $324 \mathrm{~m} / \mathrm{s}$ and $\sqrt{5}=2.23$ )

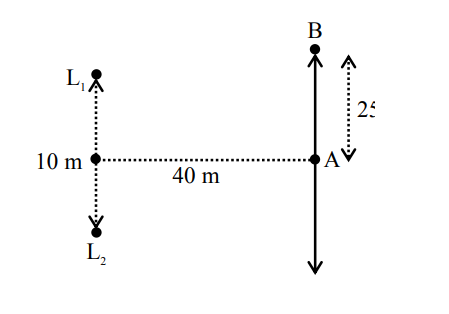

Question Image
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

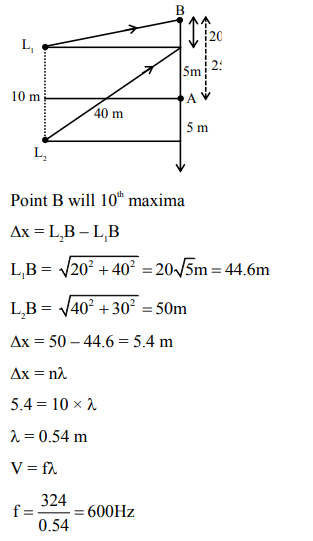

Solution
Solution Image
Question Tags
JEE Main
Physics
Hard
