JEE MAIN 2026
24-1-2026 S1
Question

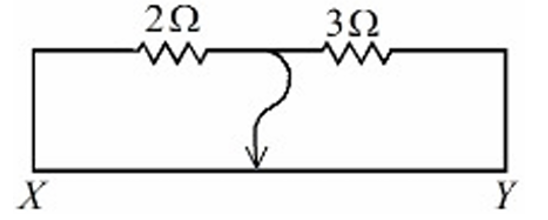

Two resistors $2 \Omega$ and $3 \Omega$ are connected in the gaps of bridge as shown in figure. The null point is obtained with the contact of jockey at some point on wire XY . When an unknown resistor is connected in parallel with $3 \Omega$ resistor, the null point is shifted by 22.5 cm toward $Y$. The resistance of unknown resistor is $\_\_\_\_$ $\Omega$.
Select the correct option:
A
3
B
2
C
4
D
1
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

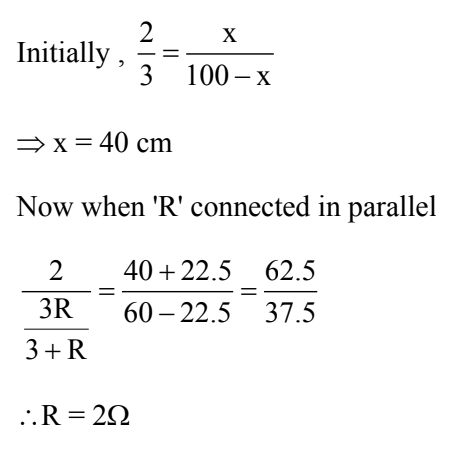

Solution
Solution Image
Question Tags
JEE Main
Physics
Medium
