JEE Advance2007
Paper-2
Question
Water is filled up to a height $h$ in a beaker of radius $R$ as shown in the figure. The density of water is $\rho$, the surface tension of water is T and the atmospheric pressure is $\mathrm{P}_0$. Consider a vertical section ABCD of the water column through a diameter of the beaker. The force on water on one side of this section by water on the other side of this section has magnitude
Question Image
Select the correct option:
A
$\left|2 \mathrm{P}_0 \mathrm{Rh}+\pi \mathrm{R}^2 \rho \mathrm{gh}-2 \mathrm{RT}\right|$
B
$\left|2 \mathrm{P}_0 \mathrm{Rh}+\mathrm{R} \mathrm{gh}^2-2 \mathrm{RT}\right|$
C
$\left|\mathrm{P}_0 \pi \mathrm{R}^2+\mathrm{R} \rho g h^2-2 \mathrm{RT}\right|$
D
$\left|\mathrm{P}_0 \pi \mathrm{R}^2+\mathrm{R}^2 g \mathrm{~h}^2+2 \mathrm{RT}\right|$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

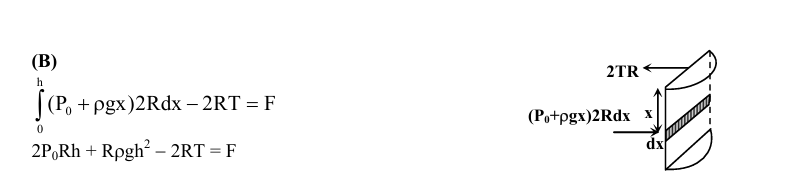

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
