JEE MAIN 2019

12-01-2019 S2

Question

A block kept on a rough inclined plane, as shown in the figure, remains at rest upto a maximum force 2 N down the inclined plane. The maximum external force up the inclined plane that does not move the block is 10 N. The coefficient of static friction between the block and the plane is:
[Take $\mathrm{g}=10 \mathrm{~m} / \mathrm{s}^2$ ]

Select the correct option:

A

$\frac{1}{2}$

B

$\frac{\sqrt{3}}{2}$

C

$\frac{\sqrt{3}}{4}$

D

$\frac{2}{3}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

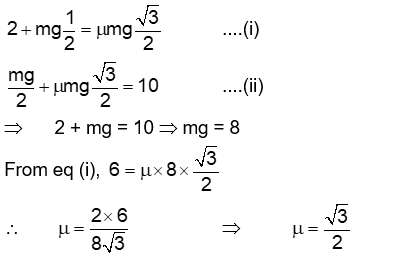

Solution

Question Tags

JEE Main

Physics

Medium
