A compound microscope | GEOMETRICAL OPTICS | JEE-MAIN 2020

Competishun Header

JEE MAIN 2020

05-09-2020 S1

Question

A compound microscope consists of an objective lens of focal length 1 cm and an eyepiece of focal length 5 cm with a separation of 10 cm . The distance between an object and the objective lens, at which the strain on the eye is minimum is $\frac{n}{40} \mathrm{~cm}$. The value of $n$ is $\_\_\_\_$ .

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

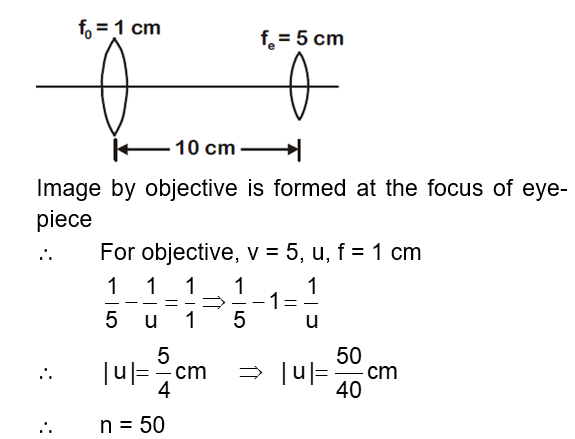

Solution

Question Tags

JEE Main

Physics

Medium
