Question

A copper wire of length 3 m is stretched by 3 mm by applying an external force. The volume of the wire is $600 \times 10^{-6} \mathrm{~m}^3$. The elastic potential energy stored in the wire in stretched condition would be $\_\_\_\_$ J. (Given Young modulus of copper $=1.1 \times 10^{11} \mathrm{~N} / \mathrm{m}^2$ )

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

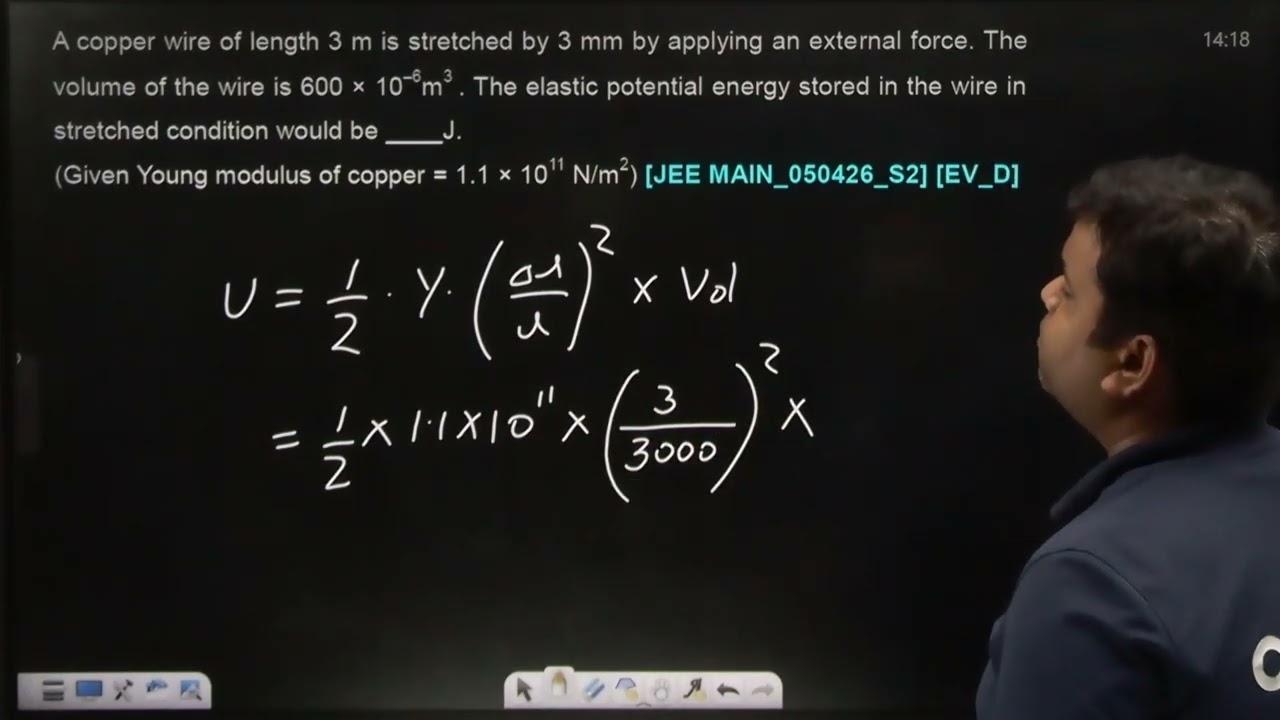

Solution

$\begin{aligned} & \mathrm{U}=\frac{1}{2} \times \mathrm{Y} \times(\text { strain })^2 \times \text { volume } \\ & =\frac{1}{2} \times 1.1 \times 10^{11} \times\left(\frac{3 \times 10^{-3}}{3}\right)^2 \times 600 \times 10^{-6} \\ & \mathrm{U}=33 \mathrm{~J}\end{aligned}$

Question Tags

JEE Main

Physics

Easy
