A plano-convex lens is made | Physics | JEE ADVANCED 2016

Competishun Header

JEE Advanced 2016

Paper-1 2016

Multiple correct answers - Select all that apply

Question

A plano-convex lens is made of a material of refractive index n. When a small object is placed 30 cm away in front of the curved surface of the lens, an image of double the size of the object is produced. Due to reflection from the convex surface of the lens, another faint image observed at a distance of 10 cm away from the lens. Which of the following statement(s) is(are) true?

Select ALL correct options:

A

The refractive index of the lens is 2.5

B

The radius of curvature of the convex surface is 45 cm

C

The faint image is erect and real

D

The focal length of the lens is 20 cm

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

⚠ Partially correct. Some answers are missing.

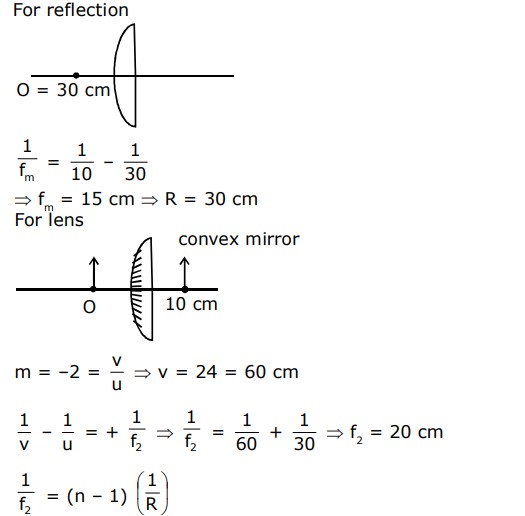

Solution

Question Tags

JEE Advance

Physics

Easy

Start Preparing for JEE with Competishun

Video Solution

BY competishun

Watch Solution from 2:09:10
