Question
A series AC circuit containing an inductor ( 20 mH ), a capacitor ( $120 \mu \mathrm{~F}$ ) and a resistor ( $60 \Omega$ ) is driven by an AC source of $24 \mathrm{~V} / 50 \mathrm{~Hz}$. The energy dissipated in the circuit in 60 s is
Select the correct option:
A
$5.65 \times 10^2 \mathrm{~J}$
B
$5.17 \times 10^2 \mathrm{~J}$
C
$2.26 \times 10^3 \mathrm{~J}$
D
$3.39 \times 10^3 \mathrm{~J}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

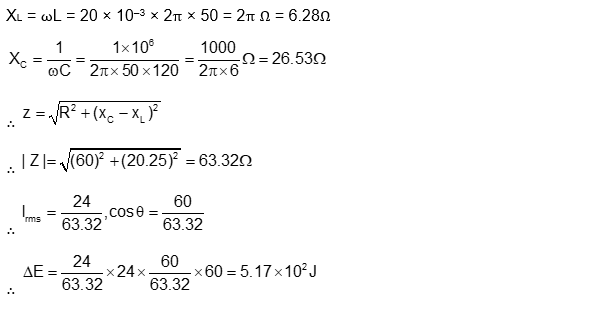

Solution
Solution Image
