Question

A series LCR circuit is subjected to an AC signal of $200 \mathrm{~V}, 50 \mathrm{~Hz}$. If the voltage across the inductor $(\mathrm{L}=10 \mathrm{mH})$ is 31.4 V , then the current in this circuit is $\_\_\_\_$ :

Select the correct option:

A

68 A

B

63 A

C

10 A

D

10 mA

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

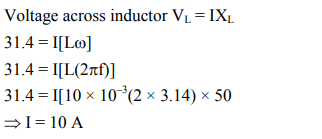

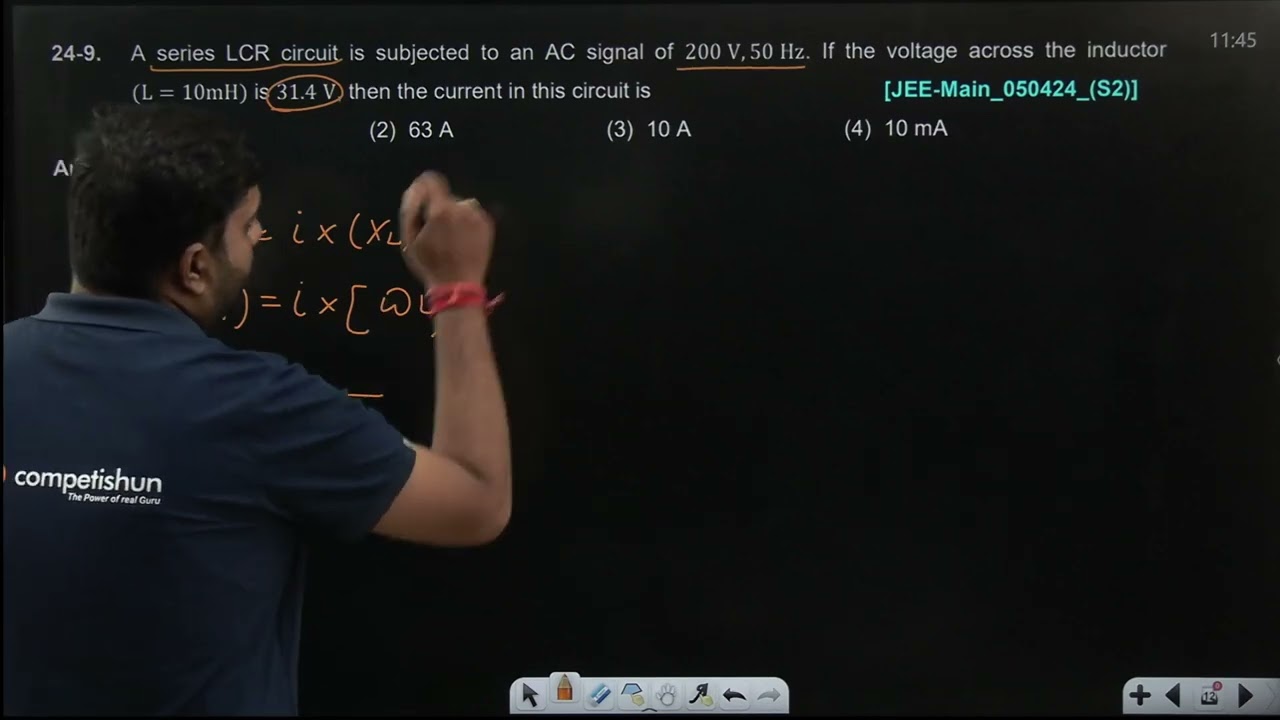

Solution

Question Tags

JEE Main

Physics

Easy
