JEE MAIN 2021

27-07-2021 S2

Question

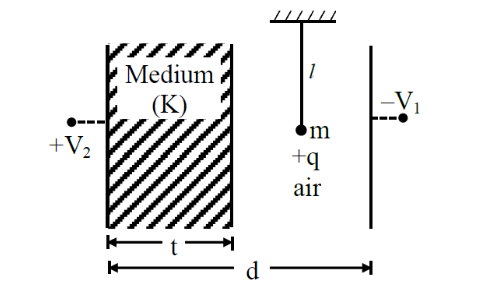

A simple pendulum of mass ' $m$ ' length ' $l$ ' and charge ' $+q$ ' suspended in the electric field produced by two conducting parallel plates as shown. The value of deflection of pendulum in equilibrium position will be

Select the correct option:

A

$\tan ^{-1}\left[\frac{q}{m g} \times \frac{C_1\left(V_2-V_1\right)}{\left(C_1+C_2\right)(d-t)}\right]$

B

$\tan ^{-1}\left[\frac{q}{m g} \times \frac{C_2\left(V_2-V_1\right)}{\left(C_1+C_2\right)(d-t)}\right]$

C

$\tan ^{-1}\left[\frac{q}{m g} \times \frac{C_2\left(V_1+V_2\right)}{\left(C_1+C_2\right)(d-t)}\right]$

D

$$ \tan ^{-1}\left[\frac{q}{m g} \times \frac{C_1\left(V_1+V_2\right)}{\left(C_1+C_2\right)(d-t)}\right] $$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

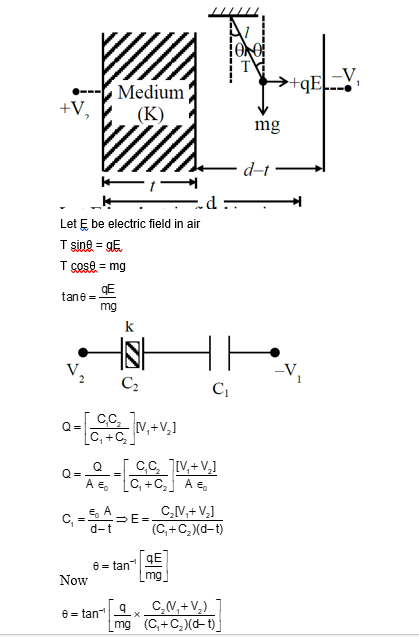

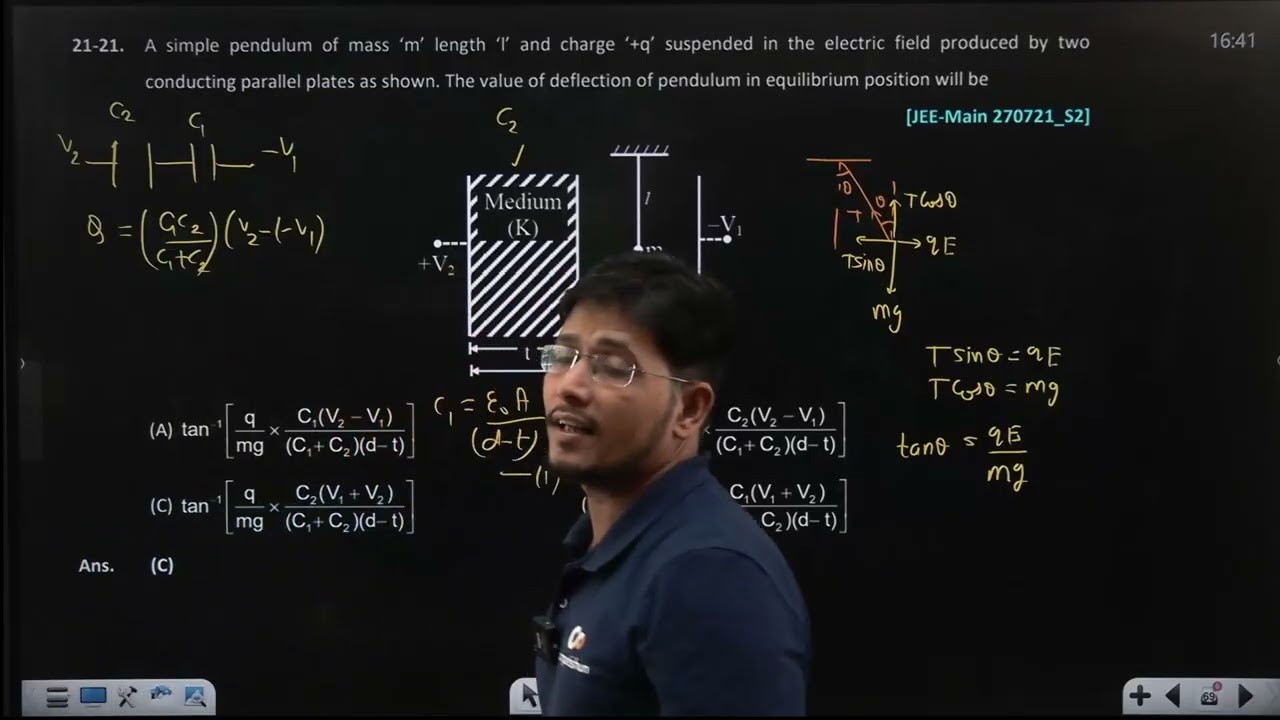

Solution

Question Tags

JEE Main

Physics

Hard
