Question

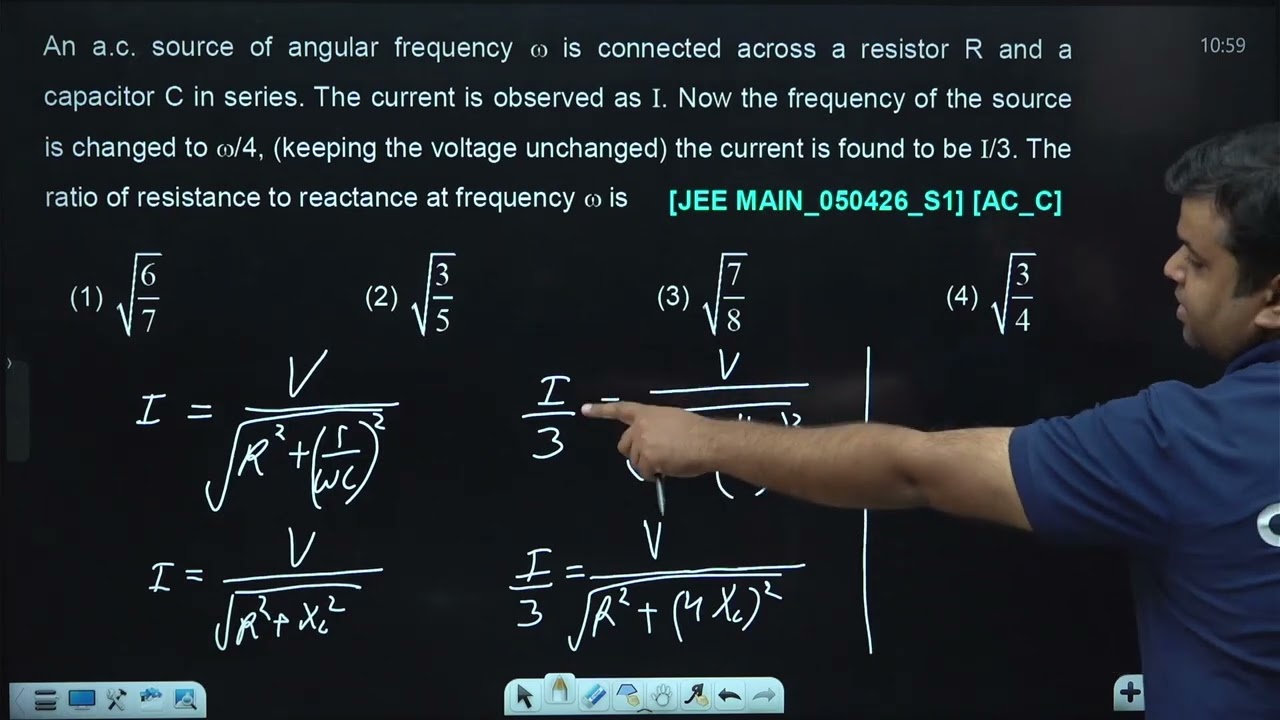

An a.c. source of angular frequency $\omega$ is connected across a resistor R and a capacitor C in series. The current is observed as I . Now the frequency of the source is changed to $\omega / 4$, (keeping the voltage unchanged) the current is found to be $I / 3$. The ratio of resistance to reactance at frequency $\omega$ is

Select the correct option:

A

$\sqrt{\frac{6}{7}}$

B

$\sqrt{\frac{3}{5}}$

C

$\sqrt{\frac{7}{8}}$

D

$\sqrt{\frac{3}{4}}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

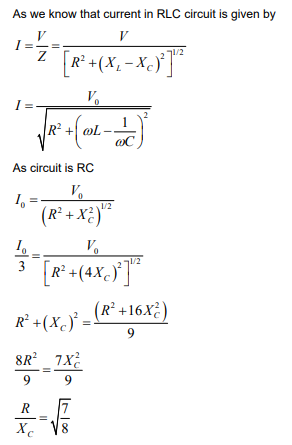

Solution

Question Tags

JEE Main

Physics

Medium
