JEE MAIN 2019
12-04-2019 S2
Question
An electron, moving along the $x$-axis with an initial energy of 100 eV , enters a region of magnetic field $\overrightarrow{\mathrm{B}}=\left(1.5 \times 10^{-3} \mathrm{~T}\right) \hat{\mathrm{k}}$ at S (See figure). The field extends between $\mathrm{x}=0$ and $\mathrm{x}=2 \mathrm{~cm}$. The electron is detected at the point Q on a screen placed 8 cm away from the point S . The distance d between P and Q (on the screen) is (electron's charge $=1.6 \times 10^{-19} \mathrm{C}$, mass of electron $=9.1 \times 10^{-31} \mathrm{~kg}$ )

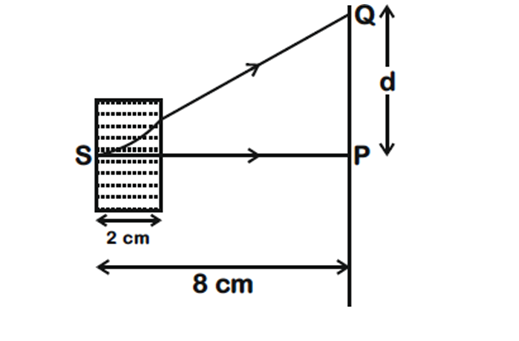

Question Image
Select the correct option:
A
11.65 cm
B
12.87 cm
C
2.25 cm
D
1.22 cm
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

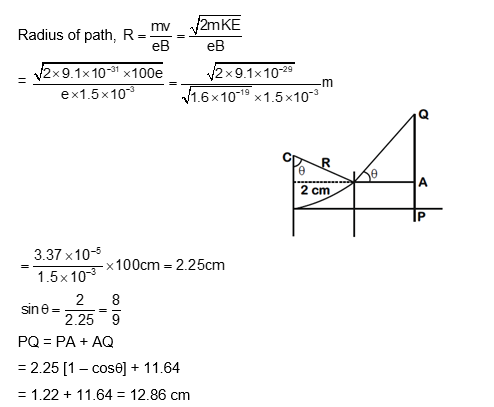

Solution
Question Tags
JEE Main
Physics
Medium
Start Preparing for JEE with Competishun
Video Solution
BY competishun
Video Solution
Watch Solution
