JEE ADVANCED 2024
Paper-1 2024
Question
An infinitely long wire, located on the $z$-axis, carries a current $/$ along the $+z$-direction and produces the magnetic field $\vec{B}$. The magnitude of the line integral $\int \vec{B} \cdot \overrightarrow{d l}$ along a straight line from the point $(-\sqrt{3} a, a, 0)$ to $(a, a, 0)$ is given by $\left[\mu_0\right.$ is the magnetic permeability of free space.
Select the correct option:
A
$7 \mu_0 / / 24$
B
$7 \mu_0 / / 12$
C
$\mu_0 / / 8$
D
$\mu_0 / / 6$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

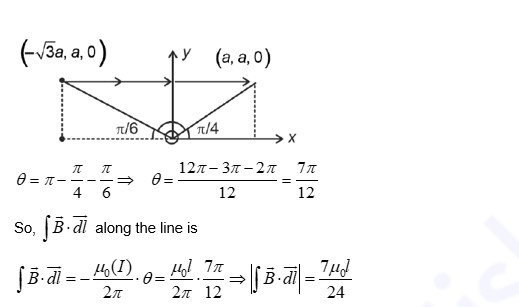

Solution
Solution Image
Question Tags
JEE Advance
Physics
Medium
Start Preparing for JEE with Competishun
Video Solution
BY competishun
Video Solution
Watch Solution
