Question

An insulated wire is wound so that it forms a flat coil with $\mathrm{N}=200$ turns. The radius of the innermost turn is $r_1=3 \mathrm{~cm}$, and of the outermost turn $r_2=6 \mathrm{~cm}$. If 20 mA current flows in it then the magnetic

Select the correct option:

A

4.4

B

2.64

C

3.25

D

1.2

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

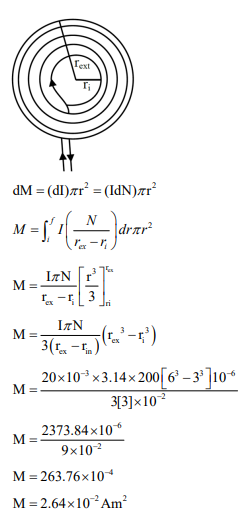

Solution

Question Tags

JEE Main

Physics

Hard

Start Preparing for JEE with Competishun

Video Solution

BY competishun

Watch Solution

YouTube
