JEE Advance2022
Paper-2
Question

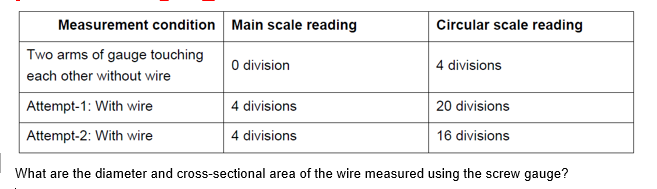

Area of the cross-section of a wire is measured using a screw gauge. The pitch of the main scale is 0.5 mm . The circular scale has 100 divisions and for one full rotation of the circular scale, the main scale shifts by two divisions. The measured readings are listed below.
Select the correct option:
A
$2.22 \pm 0.02 \mathrm{~mm}, \pi(1.23 \pm 0.02) \mathrm{mm}^2$
B
$2.22 \pm 0.01 \mathrm{~mm}, \pi(1.23 \pm 0.01) \mathrm{mm}^2$
C
$2.14 \pm 0.02 \mathrm{~mm}, \pi(1.14 \pm 0.02) \mathrm{mm}^2$
D
$2.14 \pm 0.01 \mathrm{~mm}, \pi(1.14 \pm 0.01) \mathrm{mm}^2$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

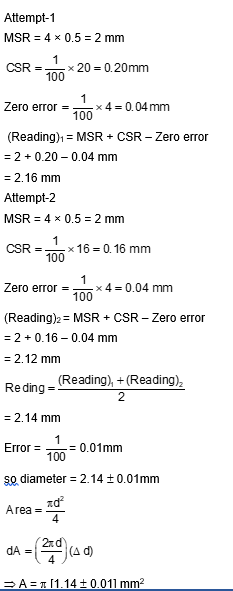

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
