JEE Advance2016
Paper-2
Question
Consider an evacuted cylindrical chamber of height $h$ having rigid conducting plates at the end and an insulting curved surface as shown in the figure. A number of spherical balls made of a light weight and soft material and coated with a conducting material are placed on the bottom plated. The balls have a radius $r \ll h$. Now a high voltage source (HV) is connected across the conducting plates such that the bottom plate is at $+\mathrm{V}_0$ and the top plate at $-\mathrm{V}_0$. Due to their conducting surface, the balls will eventually collide with the top plate, where the plate and are repelled by it. The balls will eventually collide with the top plate, where the coefficient of restitution can be taken to be zero due to the soft nature the material of the balls. The electric field in the chamber can be considered to be that of a parallel plate capacitor. Assume that there are no collisions between the balls and the interaction between them is negligible. (Ignore gravity)
The average current in the steady state registered by the ammeter in the circuit will be
Select the correct option:
A
zero
B
proportional to the potential $\mathrm{V}_0$
C
proportional to $\mathrm{V}_0^{1 / 2}$
D
proportional to $\mathrm{V}_0^2$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

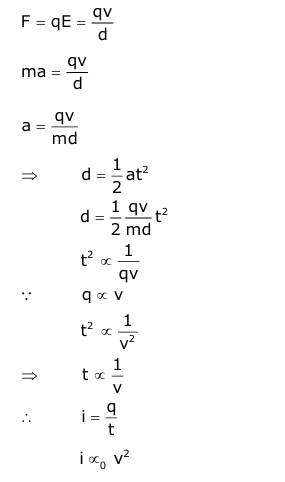

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
