Different combination... |JEE Main 2023| Current Electricity

JEE MAIN

13-04-23 S1

Question

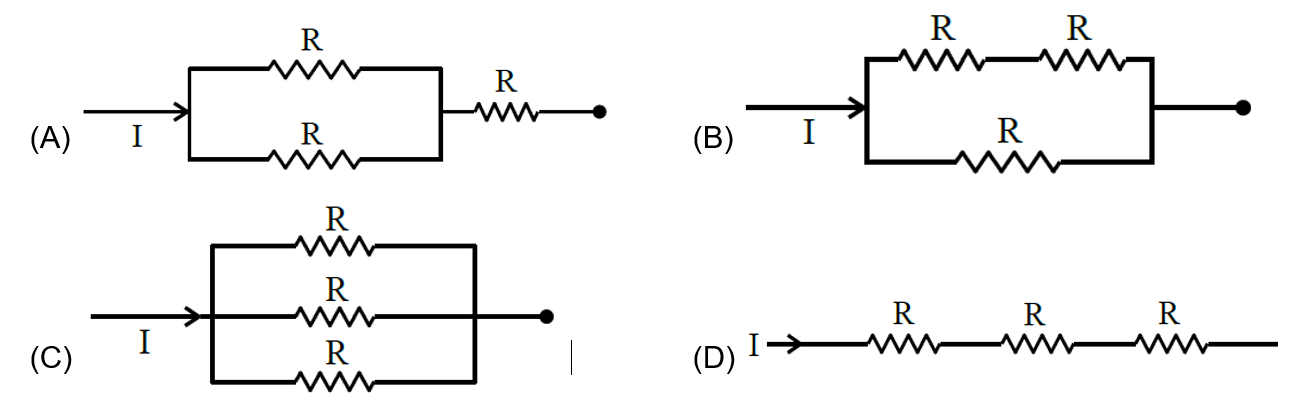

Different combination of 3 resistors of equal resistance R are shown in the figures. The increasing order for power dissipation is:

Select the correct option:

$\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}$

$\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}<\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{B}}$

$\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}<\mathrm{P}_{\mathrm{A}}$

$\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{D}}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

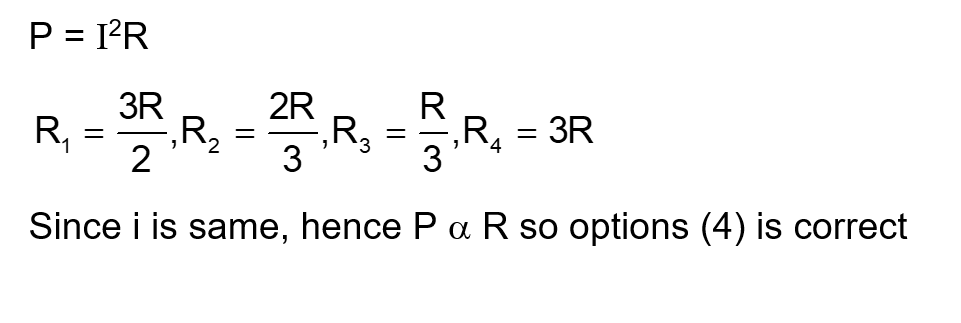

Solution
